Gentec Compact Torches and Small Torches

Quote:

---

Originally Posted by Jayadeva

Hey, I am looking for a replacement barb (I am guessing 1/16) to b or 1/4 npt fitting for the end of one of the lines, I was wondering if you had any on hand or if you knew a good place to get one.

---

I don't think you can get just the nut and barb from Gentec. I have tried to get individual parts that weren't on the parts list before and it didn't work out. You might have to buy replacement hoses to get it fixed.

You could also try stripping the old hose off the barb and reattaching, but I don't know if this is a possibility for you or not.

I will look into it a little more and see if I can find a solution, let me know if you find something so I will know where to look im the future.

Compact me baby!

I posted this info in another thread, but I feel it should be here as well to help clarify a few differences between the Compact and the Gentec Small/Smith torches, so here is a copy:

I want to address this real quickly, as the difference between the Compact and the Small/Smith is something I get asked about all the time. The Compact has the same handle and knobs as the Gentec Small (which is a copy of the Smith), but after that is a different torch. The reason I love it so much is it is designed like an actual micro brazing torch, instead of using the hobbyist/jeweler platform.

The Compact uses a double O-ring seal on the tip that is tightened down by hand via the wheel. This is a way more durable, fast, easy, way to attach a tip. The Compact uses the same platform as the Victor J-28, a true workhorse in the industry for decades. In fact, you can swap Victor W-J tips onto a Compact if you are so inclined. The Compact tips also have a mixer on them (one main hole and 4 smaller ones around the collar, while the Small and Smith just have one hole. I think this is one of the reasons (combined with the larger diameter shaft) the Compact's flame is so much more stable and forceful. There is also much more material surrounding the orifice on the tip of the Compact, which means it takes longer to toast one than the tiny Small and Smith tips.

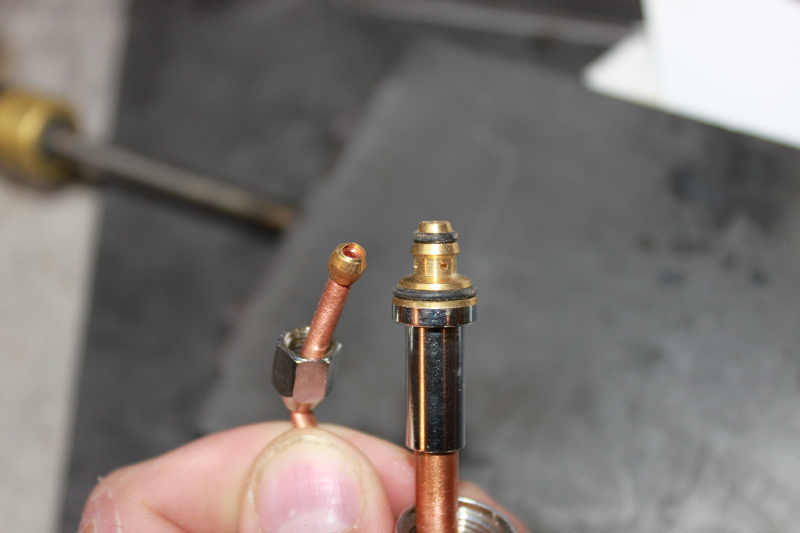

Here is a photo showing the difference:

Attachment 60768

Compact tip update:

So, I get a lot of inquiries regarding different tips that fit on the Compact. While they do their best to not explain it, I found that the Compact can accept tips from the Victor W-J line. I have some tips from Gentec I will be offering soon, that are longer and offer a variety of orifice sizes. I want to order a few more and put them through some testing so I can offer up the ones I feel are best suited for our work.

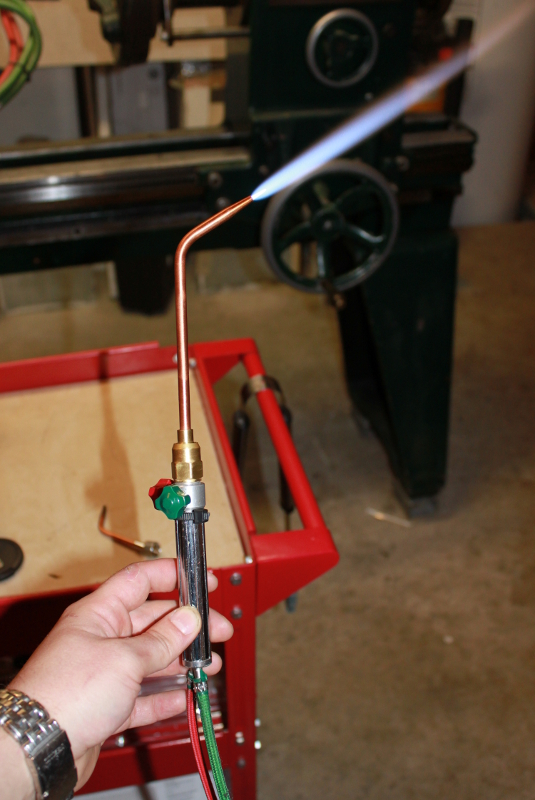

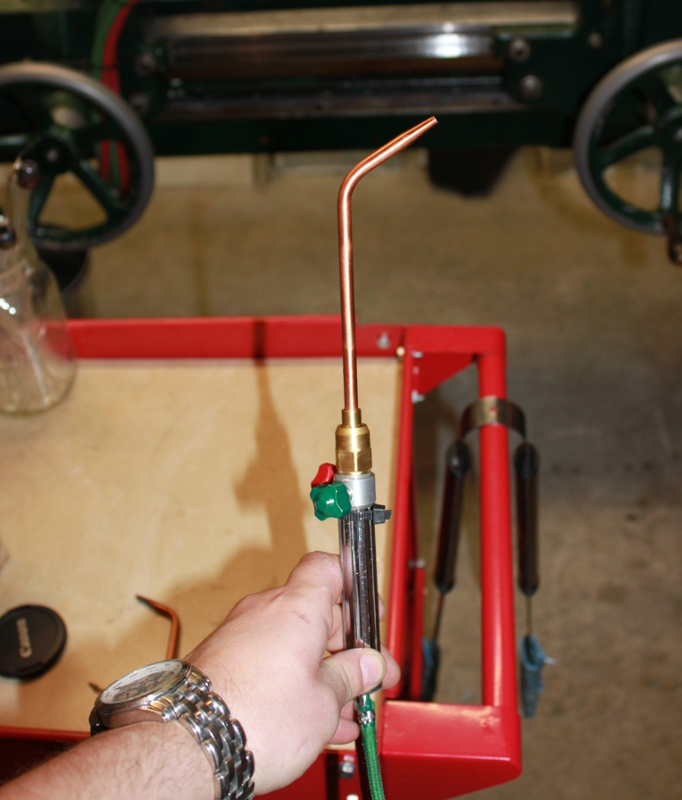

Here is a quick shot of a #3 W-J style tip on the Compact, it appears to have the exact same orifice as a Carlisle #3 centerfire. Notice it is longer and beefier than the normal Compact tips.

Attachment 60769Attachment 60770


In addition, I am working on getting my own line of aftermarket tips made for the Compact. My hope is to have these available in the booth at the DFO, but I am busy so not sure I will make that deadline. I also sent out some parts to Malcolm at ARTCO (who now has the Shelbo tip line), I believe he is working on getting some Shelbo tips and other tips made for the Compact as well!

Compacts are back in stock. I got sent the old kits with the #4 instead of the #7, but have #7's on the way. What I am doing is shipping out Compacts now, and then I will ship the #7 free of charge when I get them (should be early next week). This way you get a free #4 tip. I think everyone on the waiting list has been contacted, but if I forgot you just holla.

I now have an extension tip for the Compact available! It is 9" long, and is flexible so you can shape it how you want it - perfect for you in-kiln torchers and those who wish to overcompensate alike. It has a #6 sized tip on it that is actually really nice. It is has a softer touch than the #7 or even the shorter #6, but is still really stable and really hot. We have been putting it through the paces here in the shop, and we really like it.

So, I will be ordering some in my next shipment. I will be selling them for $29 + $6 shipping, so $35 shipped here on TMP. If bought with a torch you can save on shipping. If you want one off this first order, please message me so I can guarantee you one.

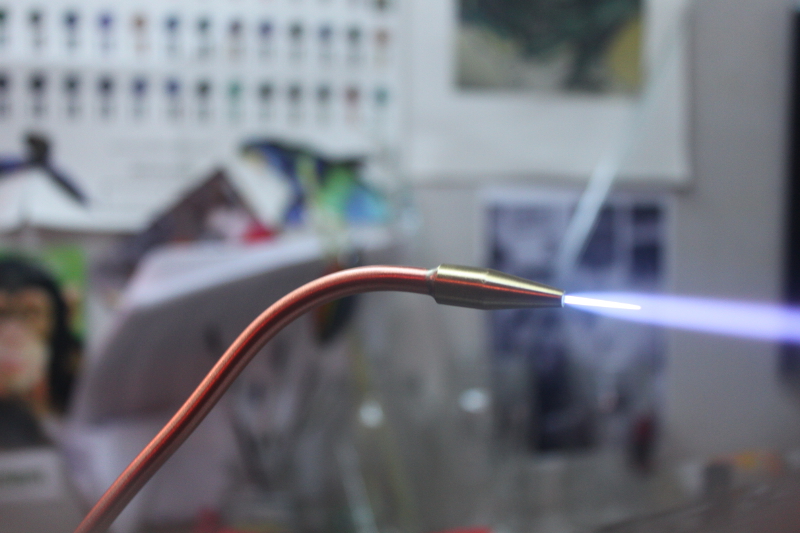

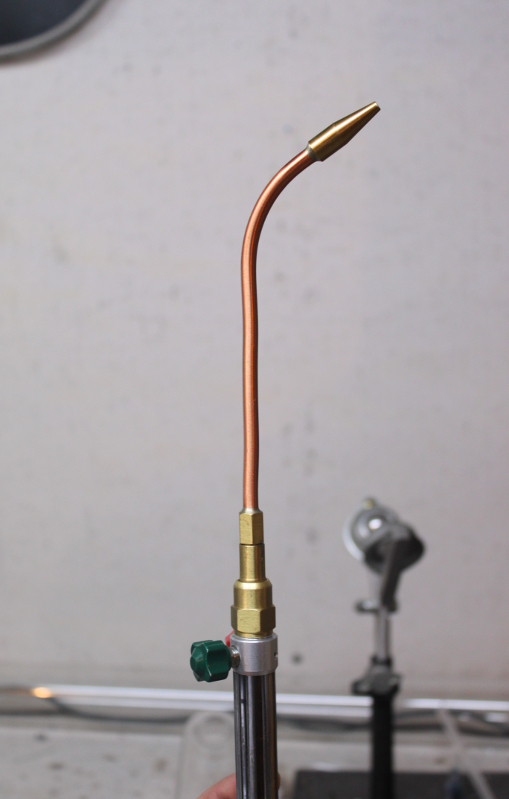

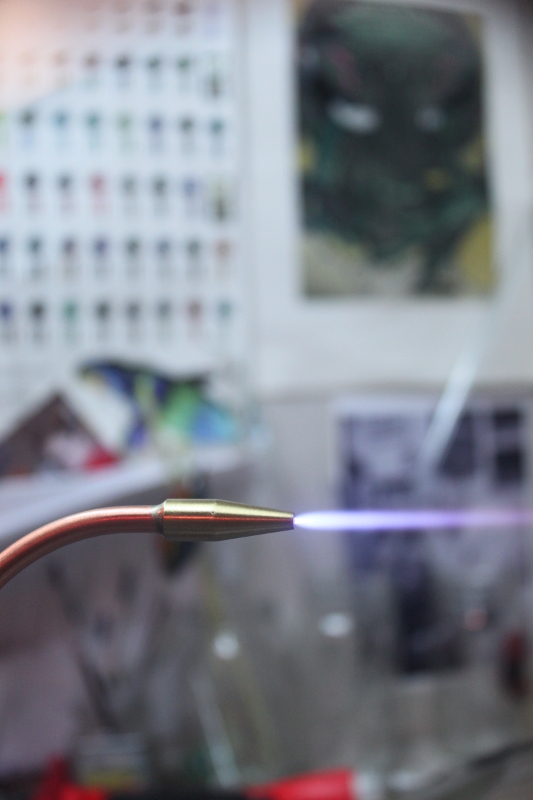

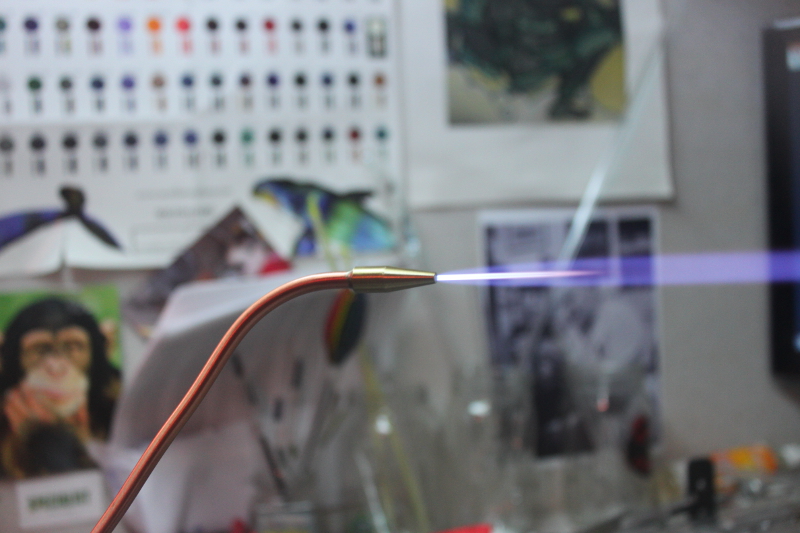

Here are some pics of the tip and a few flame shots, it has a really nice range.

Attachment 61179

Attachment 61180Attachment 61181Attachment 61182

Quote:

---

Originally Posted by aREa541

I also have a little update on some new tips for the Compact that I will be posting shortly.

---

Quote:

---

Originally Posted by Twist

Eric, please tell me that you're finally getting that extension neck for the compact.

---

Quote:

---

Originally Posted by aREa541

I now have an extension tip for the Compact available!

---

You the man Eric, I will PM you my PayPal addy soon as I'm ready to place the order. Thanks again!

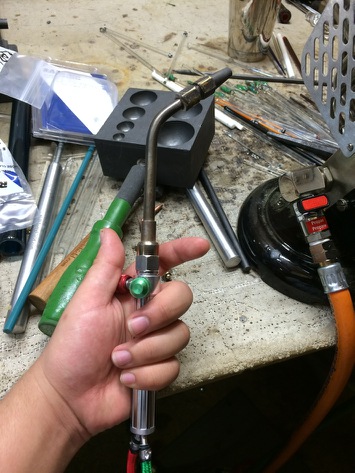

Here is a photo a customer sent me of one of his old Victor necks on the Compact. Thought it was cool and worth sharing. I have both Compacts and Small Torches in stock, so holla if you hear me!

Attachment 62070

are any of these available?

Quote:

---

Originally Posted by sevendeuce

are any of these available?

---

Torches are available. PM me and I will get you set up.

Thanks for the torch! Super fast shipping!

Eric is awesome, got my stuff today. Super dupper fast, sorta ;)

Thanks guys, I appreciate the support.

I apologize TJ for misplacing your special order request, that was a long wait to be able to buy that gas saver! I now have a have a better system for special requests so that I am sure to remember to add them on my orders.

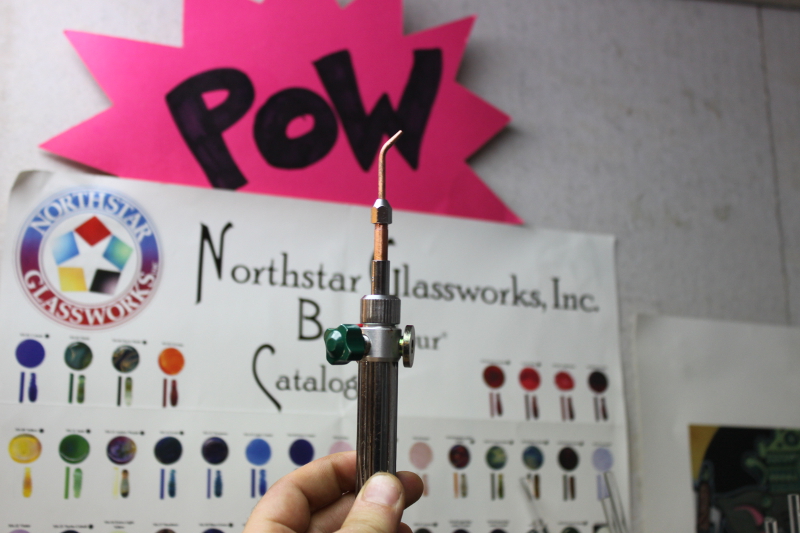

Sneak Peek: Small Torch tip on a Compact.

Aftermarket tips that fit on the Compact with the added stability and thrust from it's mixer? Yes Please!

(Onomatopoeia sold separately)


Attachment 62230

That is super cool!

Do you still have any of the 9 in tips left for the compact. I'd deffently would like one of them.

I purchased a Compact from Eric last week. He shipped it out that same day and got it to me by Friday. After working with it this weekend, I can honestly say it helps a ton. It's so easy to work with too. Also, I love the lightweight hoses when compared to using my old natty.

I would definitely do business with Eric again.

Low Stock Alert: I have one Compact and three Small kits left. Holla at me if you need a torch and I will get you set up. Good time for special order requests as well, my next order will be very soon.

One Small Torch left. More Compacts and Smalls coming late next week.

How much more easy is it to melt a glass on glass down stem into a tube compared to a lynx torch?
